Grism O600 - OSIS

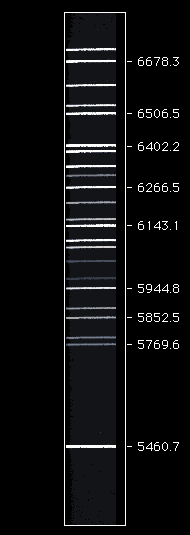

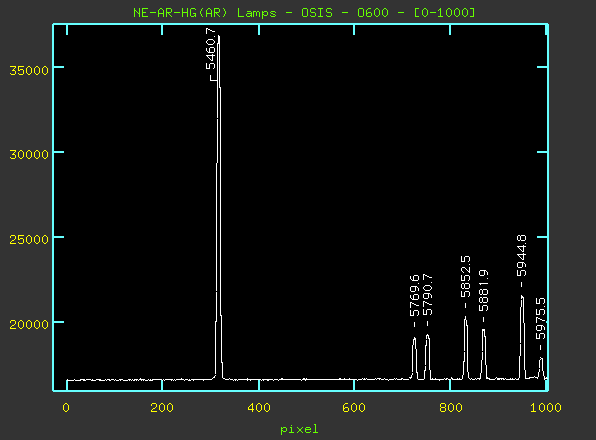

Neon-Argon-Mercury(Argon) Lamps

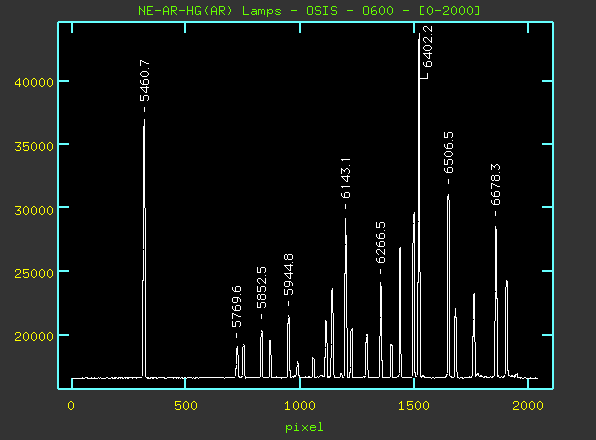

CUTS General Cut Cut Range [0-1000] Cut Range [1000-1600] Cut Range [1600-2000] NeArHg(Ar) Spectral Line List

DETAILS PARAMETER VALUE Slit Height 1" Detector STIS 2 Grism O600 Order Sorting Filter None Exposure Times Ne: 64s, 2x Ar: 320s, 2x Hg(Ar): 64s Average Dispersion .81 Å/pix

Neon Lamp

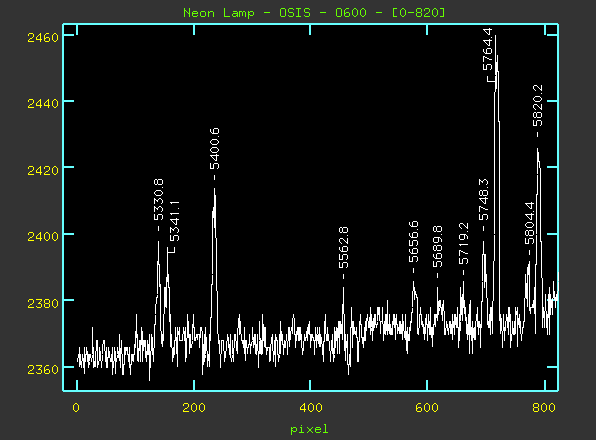

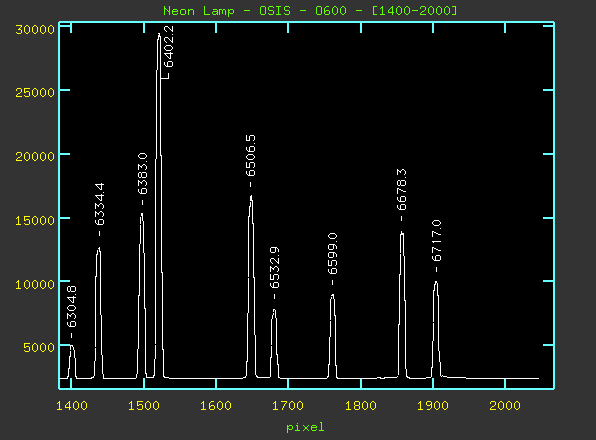

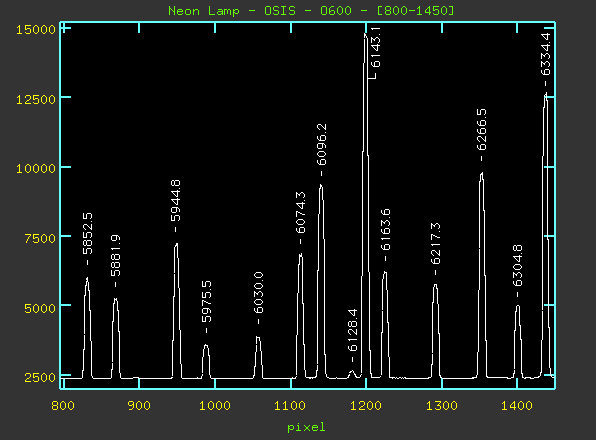

CUTS General Cut Cut Range [0-820] Cut Range [800-1450] Cut Range [1400-2000] Neon Spectral Line List

DETAILS PARAMETER VALUE Slit Height 1" Detector STIS 2 Grism O600 Order Sorting Filter None Exposure Times Ne: 64s Average Dispersion .81 Å/pix

Argon Lamps

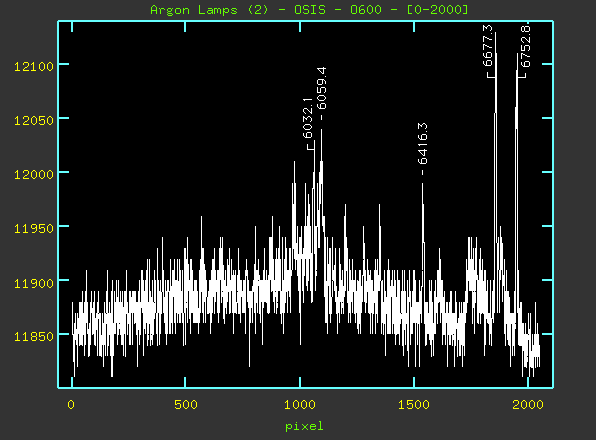

CUTS General Cut Cut Range [0-1500] Cut Range [1500-2000] Argon Spectral Line List

DETAILS PARAMETER VALUE Slit Height 1" Detector STIS 2 Grism O600 Order Sorting Filter None Exposure Times 2x Ar: 320s Average Dispersion .81 Å/pix

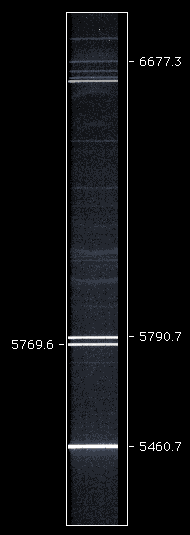

Mercury(Argon) Lamps

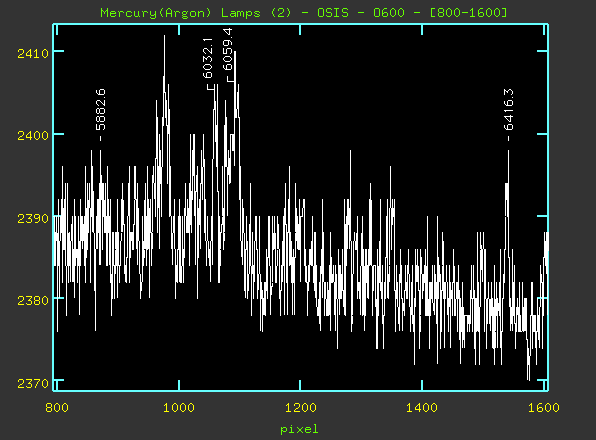

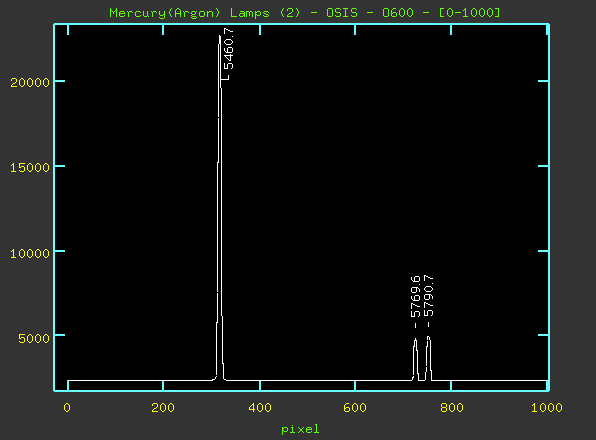

CUTS General Cut Cut Range [0-1000] Cut Range [800-1600] Cut Range [1500-2000] Mercury(Argon) Spectral Line List

DETAILS PARAMETER VALUE Slit Height 1" Detector STIS 2 Grism O600 Order Sorting Filter None Exposure Times 2x Hg(Ar): 64s Average Dispersion .81 Å/pix
