Grism O300 - OSIS

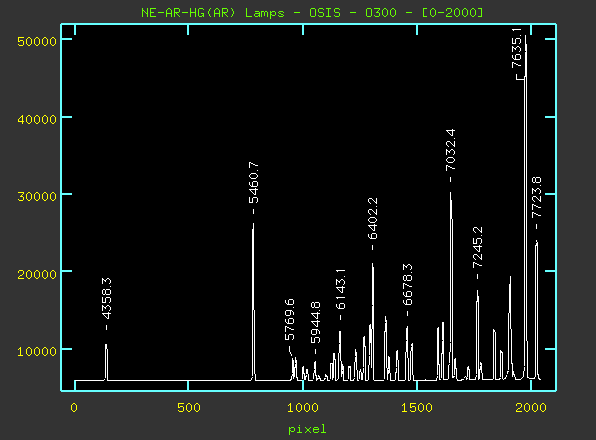

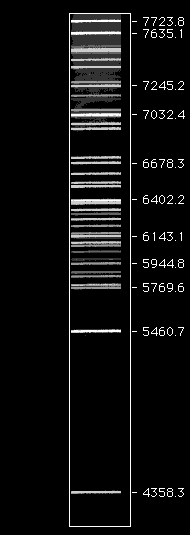

Neon-Argon-Mercury(Argon) Lamps

CUTS General Cut Cut Range [0-1000] Cut Range [1000-1500] Cut Range [1500-2000] NeArHg(Ar) Spectral Line List

DETAILS PARAMETER VALUE Slit Height 1" Detector STIS 2 Grism O300 Order Sorting Filter None Exposure Times Ne: 24s, 2x Ar: 16s, 2x Hg(Ar): 32s Average Dispersion 1.78 Å/pix

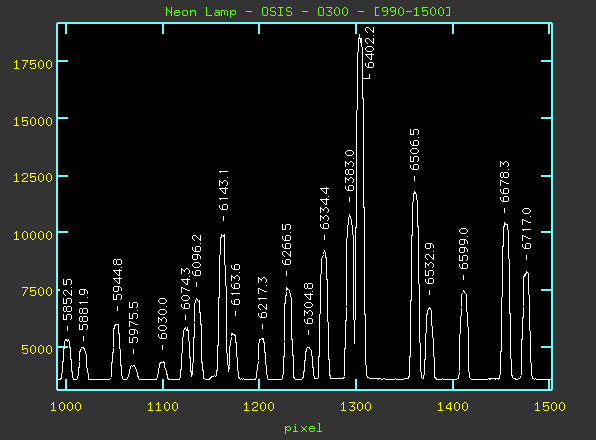

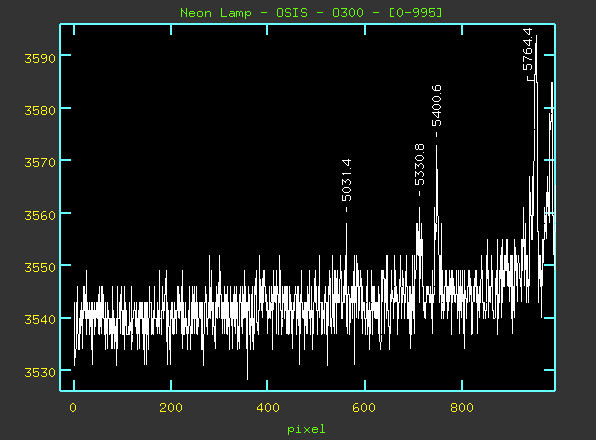

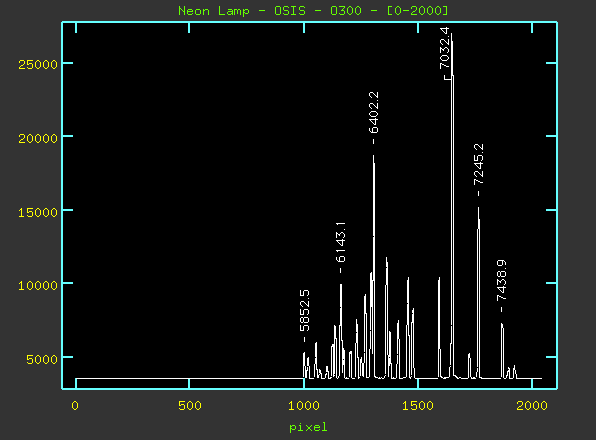

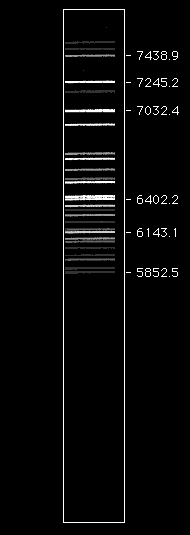

Neon Lamp

CUTS General Cut Cut Range [0-995] Cut Range [990-1500] Cut Range [1500-2000] Neon Spectral Line List

DETAILS PARAMETER VALUE Slit Height 1" Detector STIS 2 Grism O300 Order Sorting Filter None Exposure Times Ne: 24s Average Dispersion 1.78 Å/pix

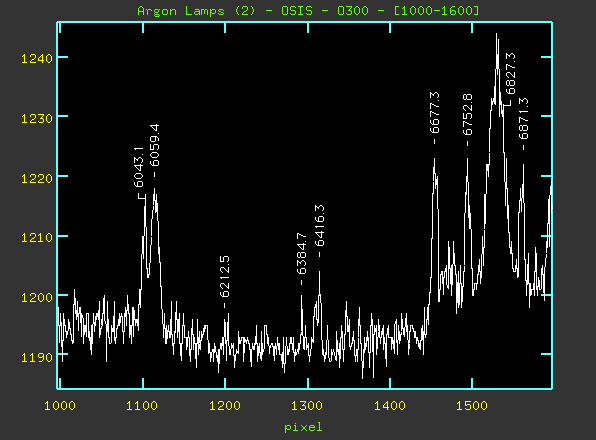

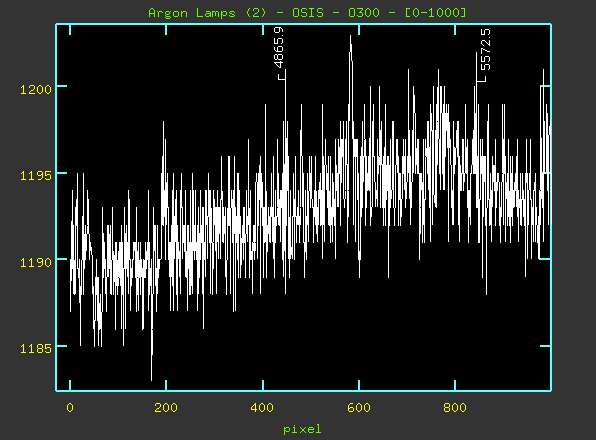

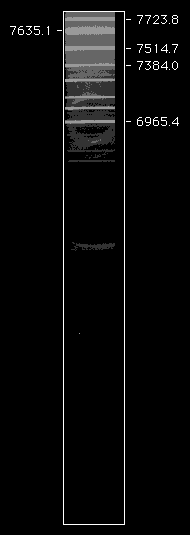

Argon Lamps

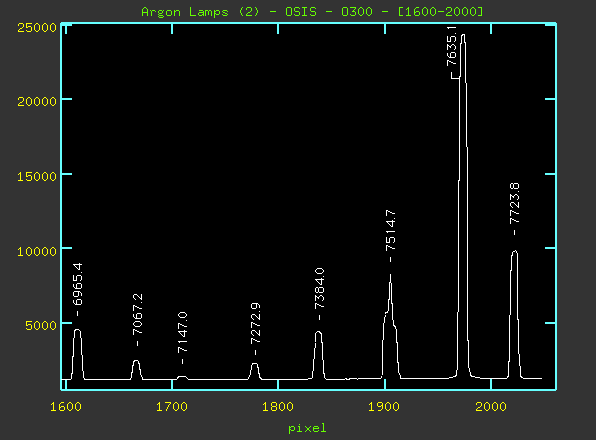

CUTS General Cut Cut Range [0-1000] Cut Range [1000-1600] Cut Range [1600-2000] Argon Spectral Line List

DETAILS PARAMETER VALUE Slit Height 1" Detector STIS 2 Grism O300 Order Sorting Filter None Exposure Times 2x Ar: 16s Average Dispersion 1.78 Å/pix

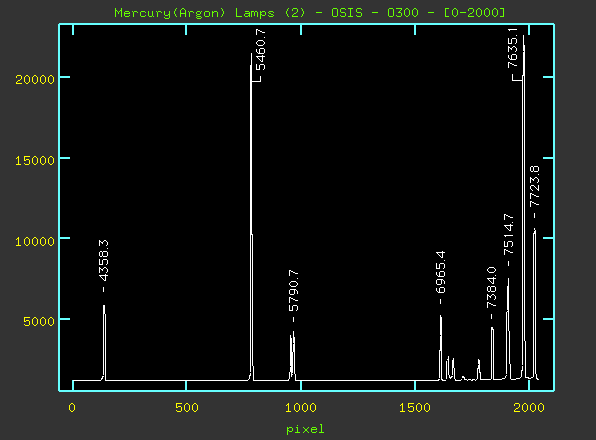

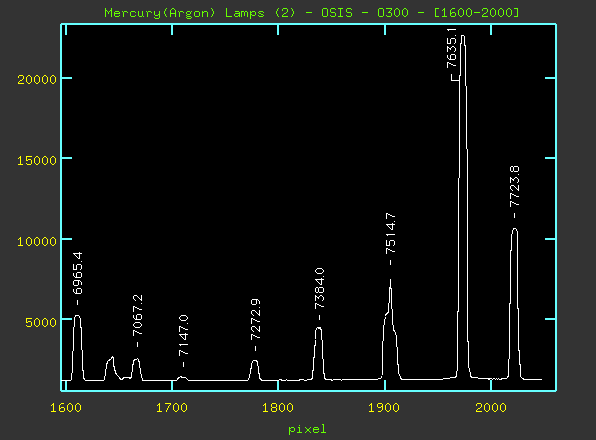

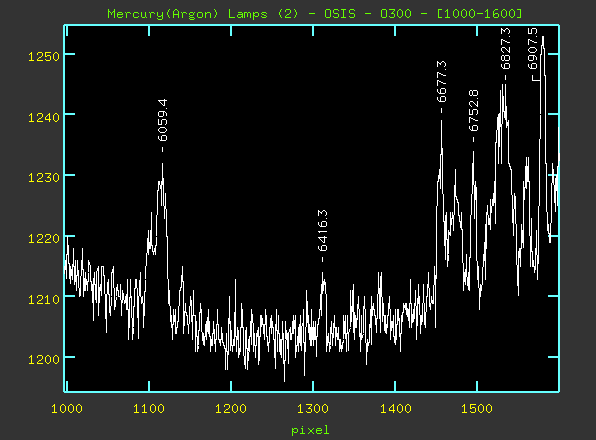

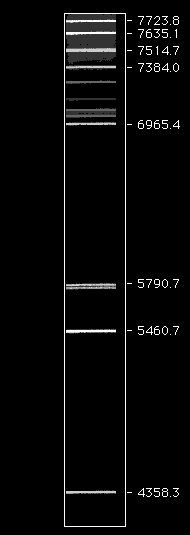

Mercury(Argon) Lamps

CUTS General Cut Cut Range [0-1000] Cut Range [1000-1600] Cut Range [1600-2000] Mercury(Argon) Spectral Line List

DETAILS PARAMETER VALUE Slit Height 1" Detector STIS 2 Grism O300 Order Sorting Filter None Exposure Times 2x Hg(Ar): 32s Average Dispersion 1.78 Å/pix

Halogen Lamp
