Grism B600 - MOS

Neon-Argon-Mercury(Argon) Lamps

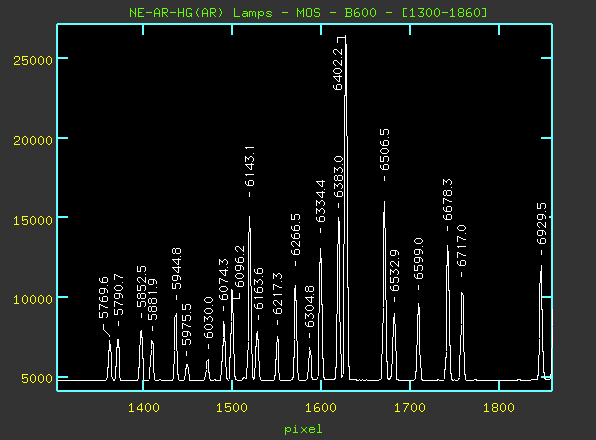

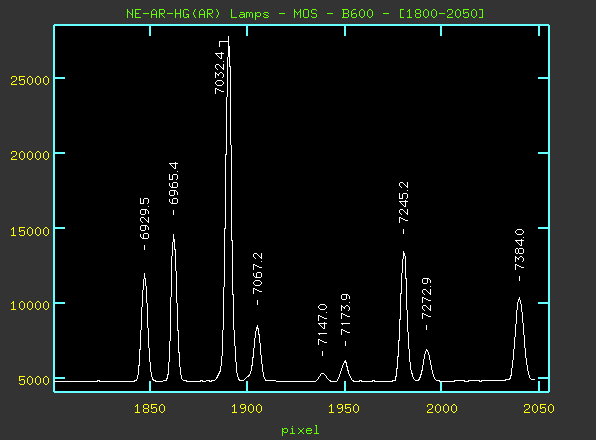

CUTS General Cut Cut Range [0-1400] Cut Range [1300-1860] Cut Range [1800-2050] NeArHg(Ar) Spectral Line List

DETAILS PARAMETER VALUE Slit Height 1.5" Detector STIS 2 Grism B600 Order Sorting Filter None Exposure Times Ne: 4s, Ar: 16s, 2x Hg(Ar): 3s Average Dispersion 2.33 Å/pix

Neon Lamp

CUTS General Cut Cut Range [0-1390] Cut Range [1400-1600] Cut Range [1500-2000] Neon Spectral Line List

DETAILS PARAMETER VALUE Slit Height 1.5" Detector STIS 2 Grism B600 Order Sorting Filter None Exposure Times Ne: 4s Average Dispersion 2.33 Å/pix

Argon Lamp

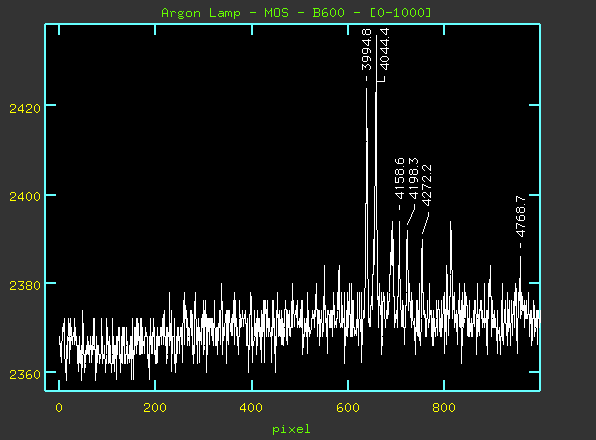

CUTS General Cut Cut Range [0-1000] Cut Range [800-1840] Cut Range [1700-2050] Argon Spectral Line List

DETAILS PARAMETER VALUE Slit Height 1.5" Detector STIS 2 Grism B600 Order Sorting Filter None Exposure Times Ar: 16s Average Dispersion 2.33 Å/pix

Mercury(Argon) Lamps

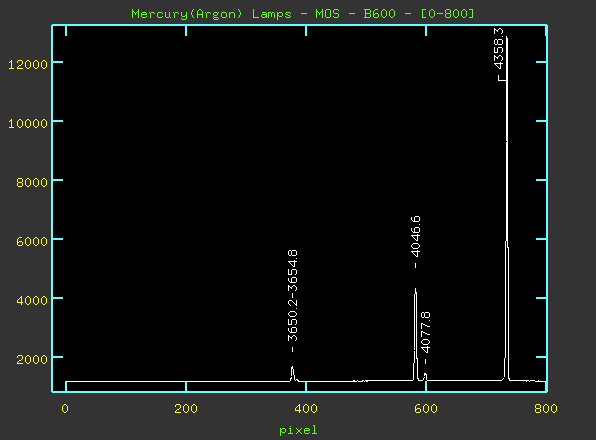

CUTS General Cut Cut Range [0-800] Cut Range [700-1500] Cut Range [1300-2000] Mercury(Argon) Spectral Line List

DETAILS PARAMETER VALUE Slit Height 1.5" Detector STIS 2 Grism B600 Order Sorting Filter None Exposure Times 2x Hg(Ar): 3s Average Dispersion 2.33 Å/pix

Halogen Lamp
