Grism U900 - OSIS

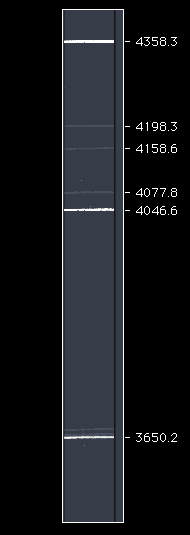

Argon-Mercury(Argon) Lamps


CUTS

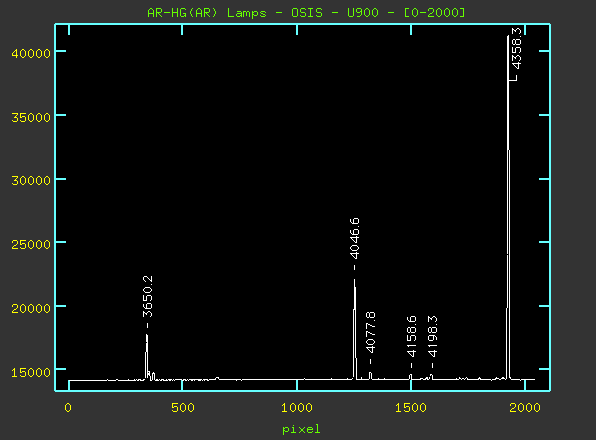

General Cut

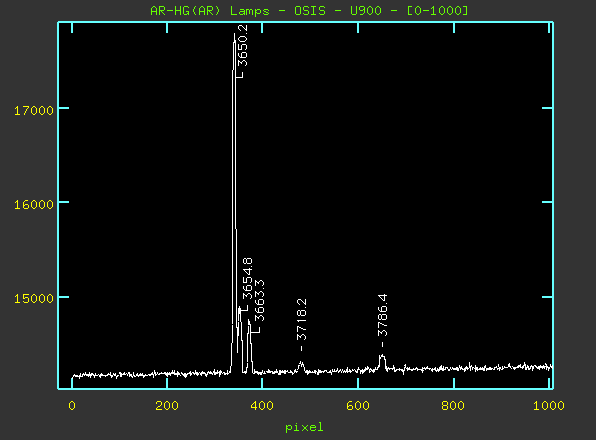

Cut Range [0-1000]
Cut Range [1000-1700]

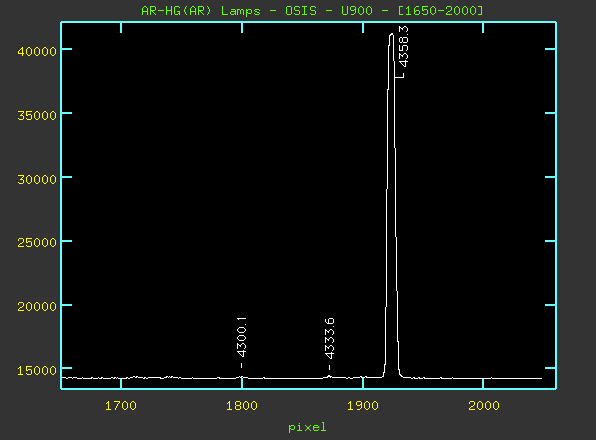

Cut Range [1650-2000]




NeArHg(Ar) Spectral Line List
DETAILS
PARAMETER VALUE
Slit Height 1"
Detector STIS 2
Grism U900
Order Sorting Filter None
Exposure Times 2x Ar: 640s, 2x Hg(Ar): 128s
Average Dispersion .45 Å/pix

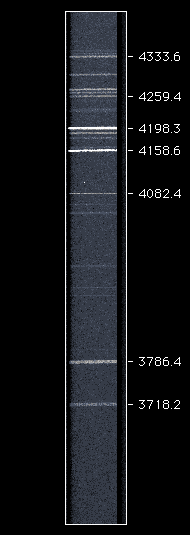

Argon Lamps


CUTS

General Cut
Cut Range [0-1000]

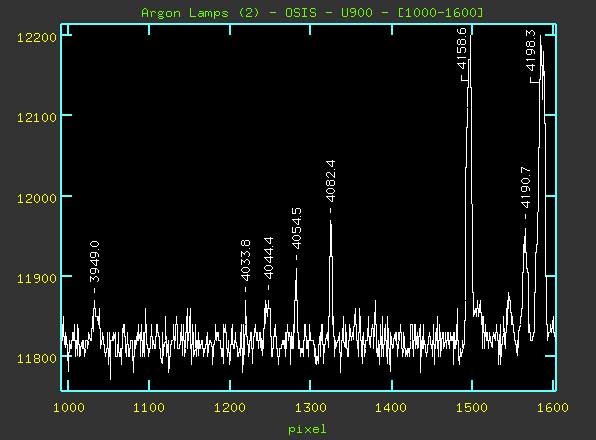

Cut Range [1000-1600]

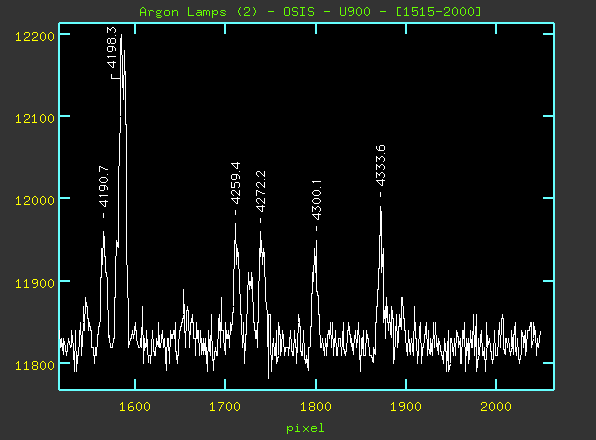

Cut Range [1515-2000]




Argon Spectral Line List
DETAILS
PARAMETER VALUE
Slit Height 1"
Detector STIS 2
Grism U900
Order Sorting Filter None
Exposure Times 2x Ar: 640s
Average Dispersion .45 Å/pix

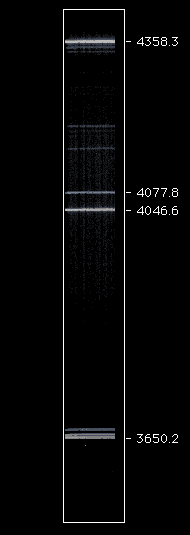

Mercury(Argon) Lamps


CUTS

General Cut
Cut Range [0-1350]

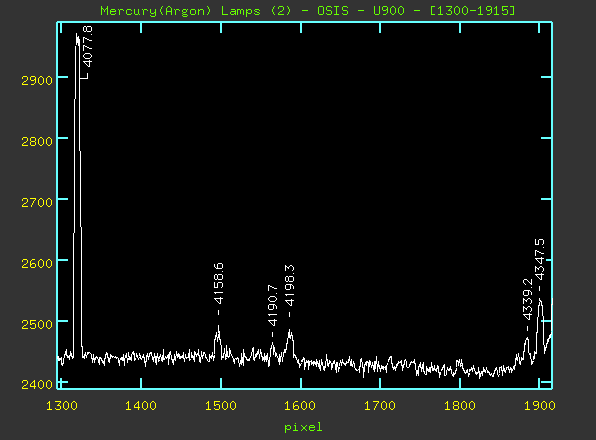

Cut Range [1300-1915]

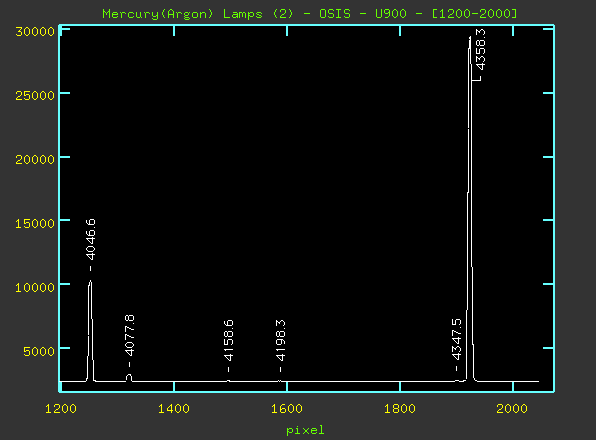

Cut Range [1200-2000]




Mercury(Argon) Spectral Line List
DETAILS
PARAMETER VALUE
Slit Height 1"
Detector STIS 2
Grism U900
Order Sorting Filter None
Exposure Times 2x Hg(Ar): 128s
Average Dispersion .45 Å/pix
